Medical Clinic

First Semester third year studio project lead by Dr. Jim Jones, Medical Clinic located in Christiansburg, VA containing three different types of medical offices. Interaction with client to generate ideas for the construction of their future clinic.

beginning exterior sketch, prioritizing levels and physically elevating

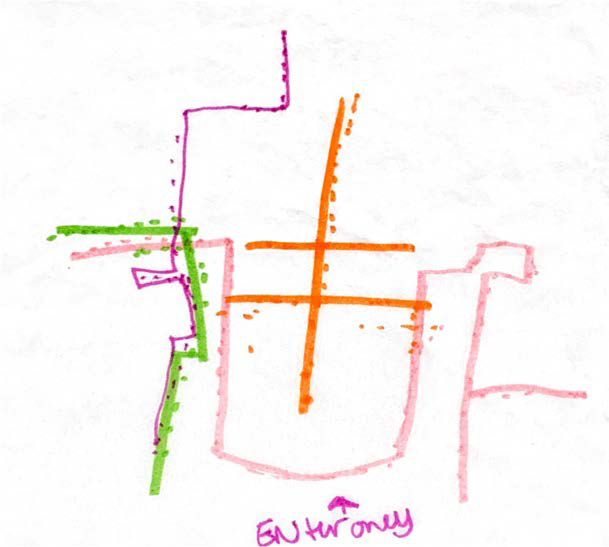

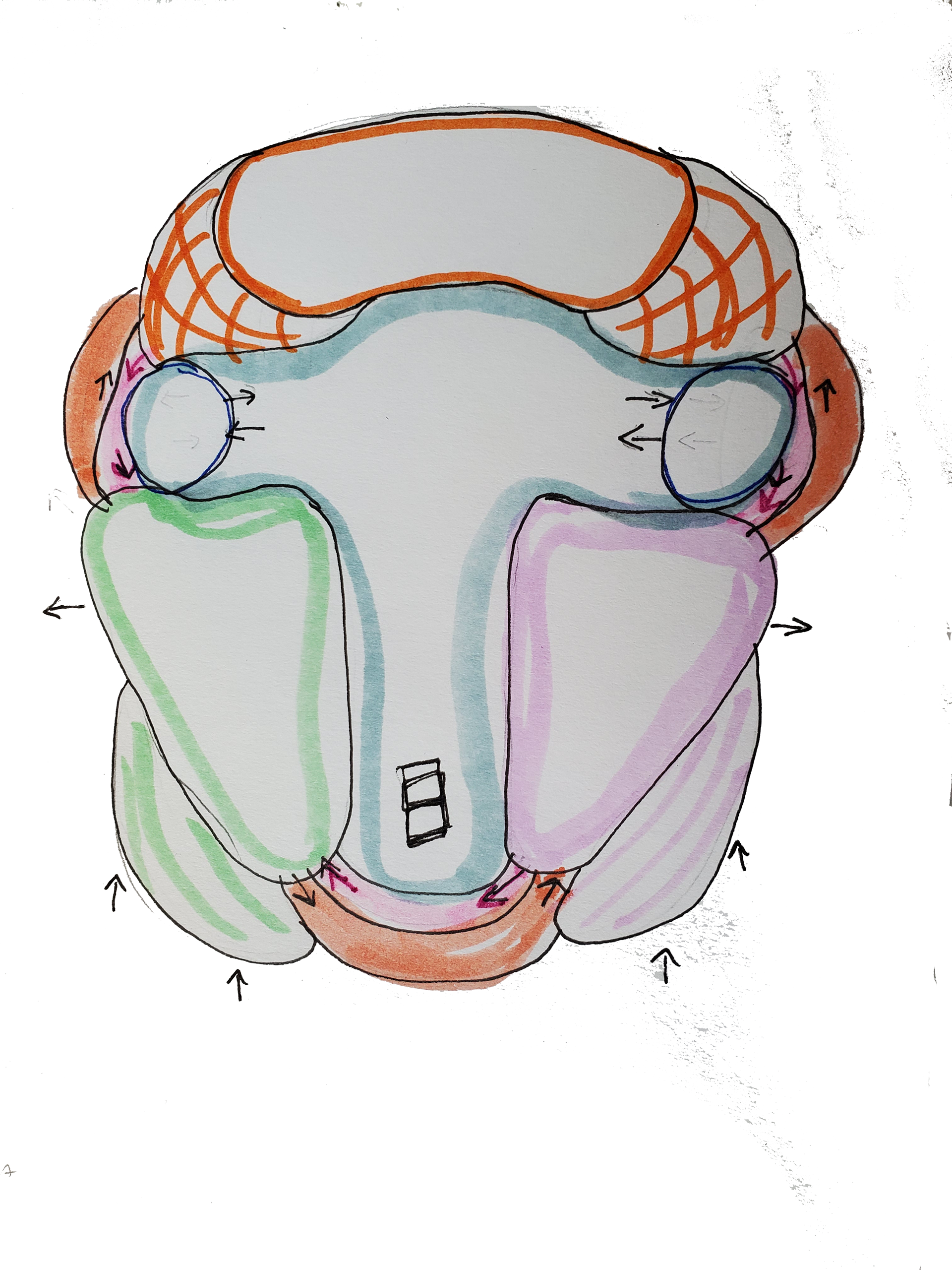

series of optional paths different visitors, and staff may take. overall connection for 'warm handoff' between differing clinics within building space

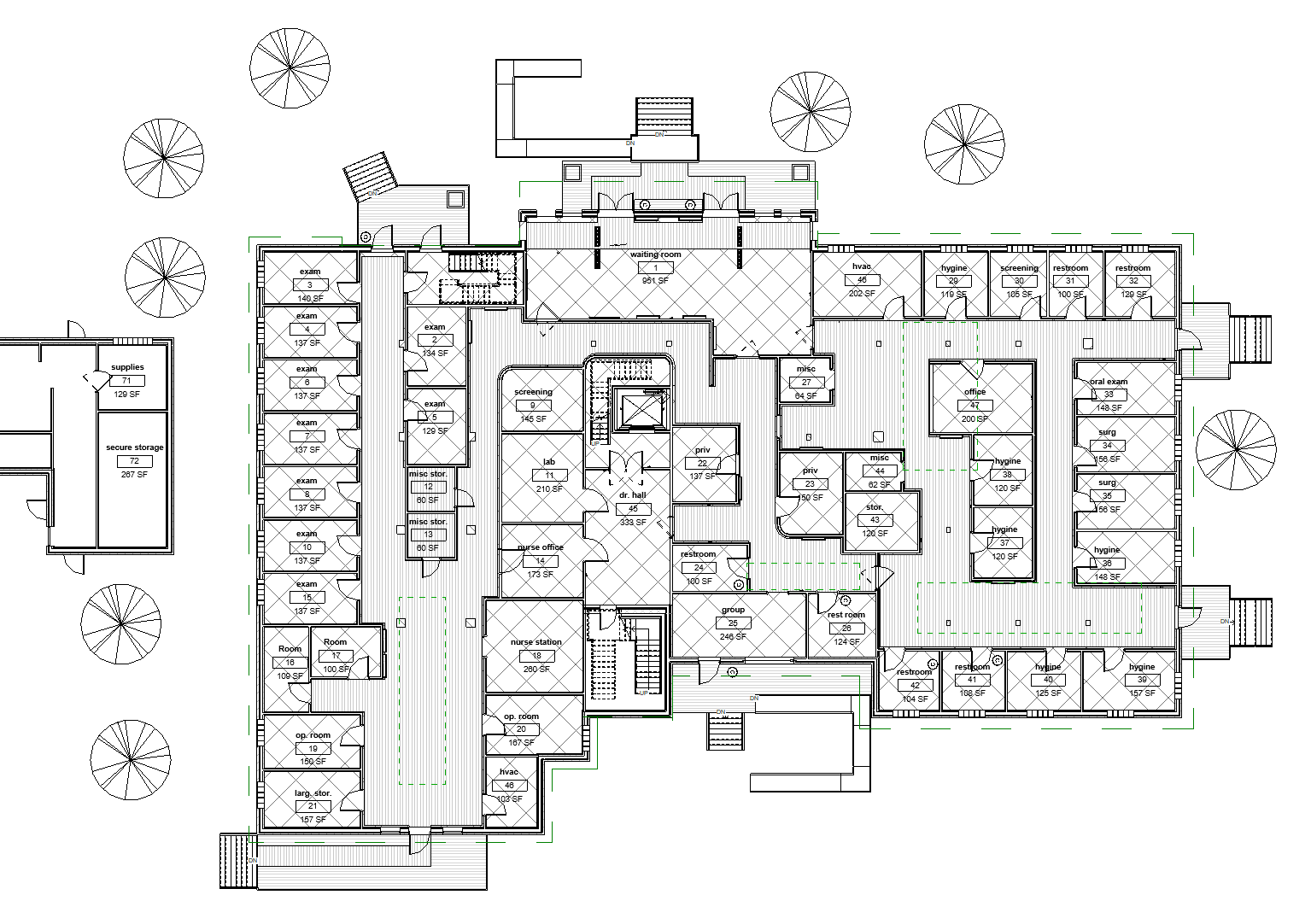

first floor plan

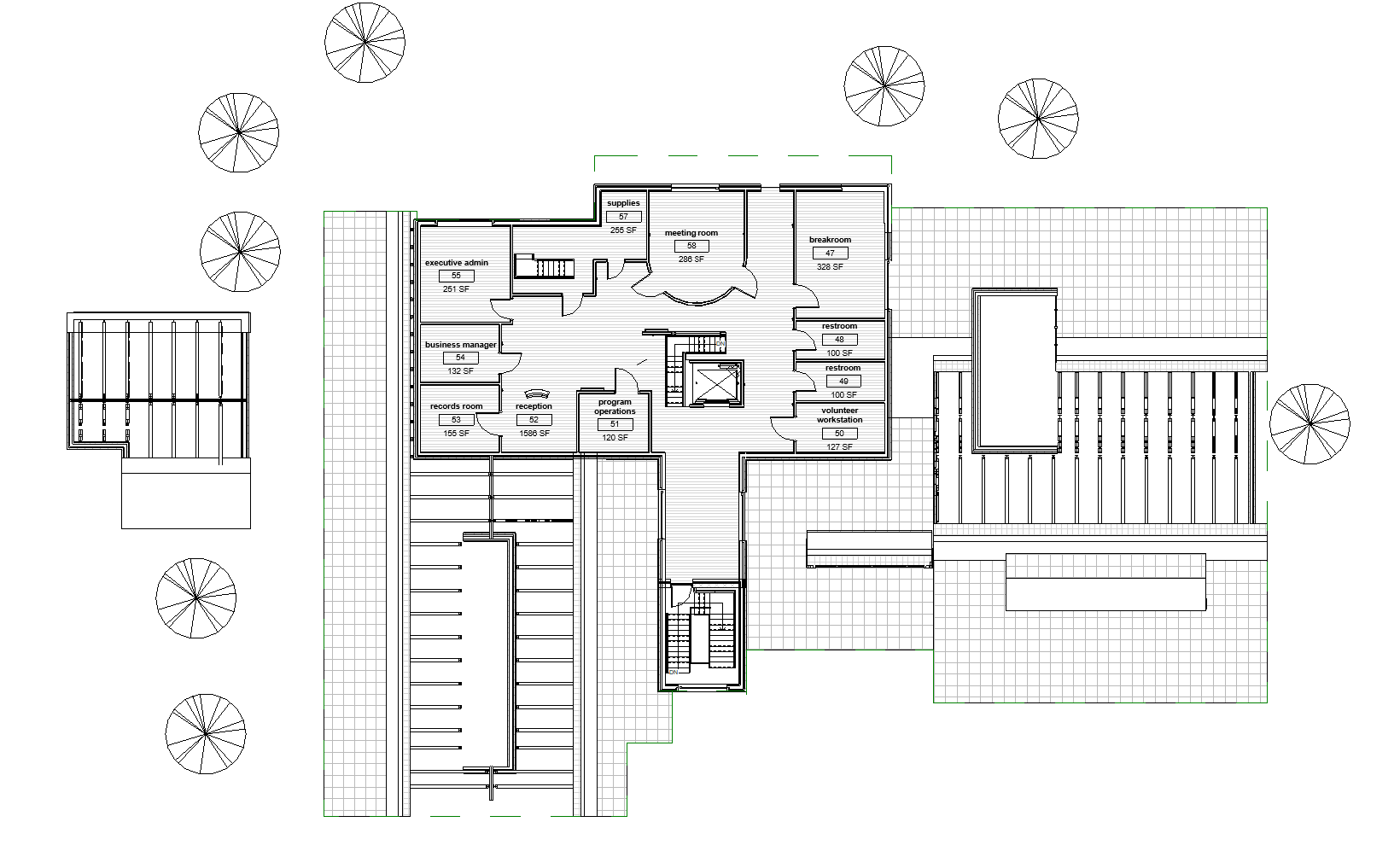

second floor plan

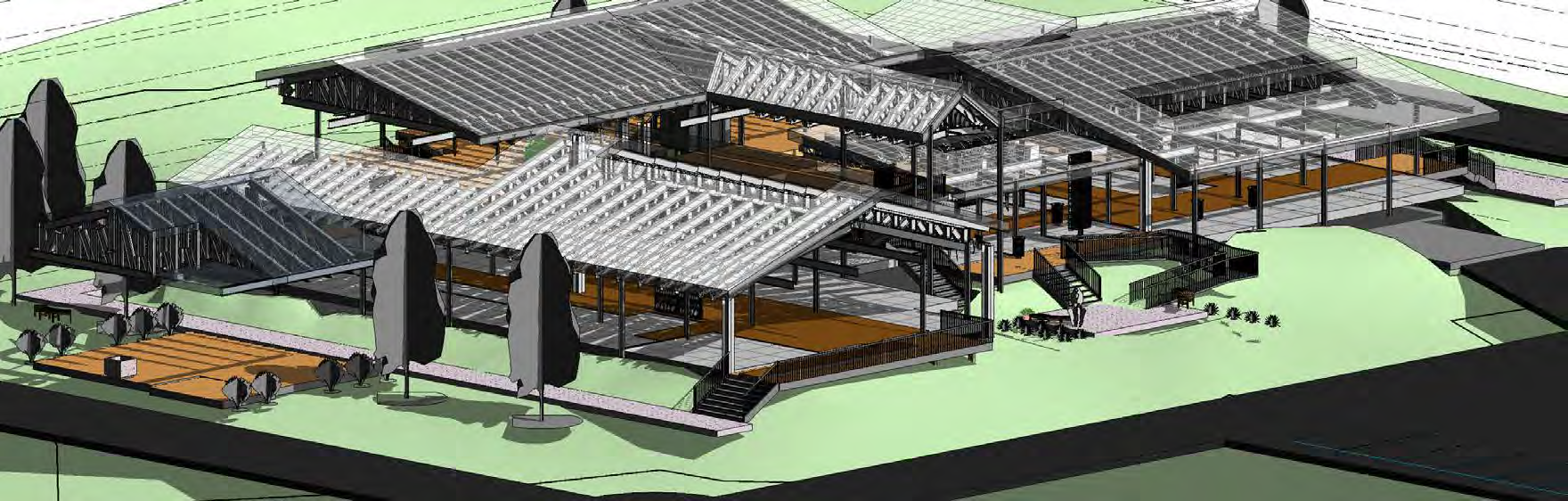

structural view of roof and column system

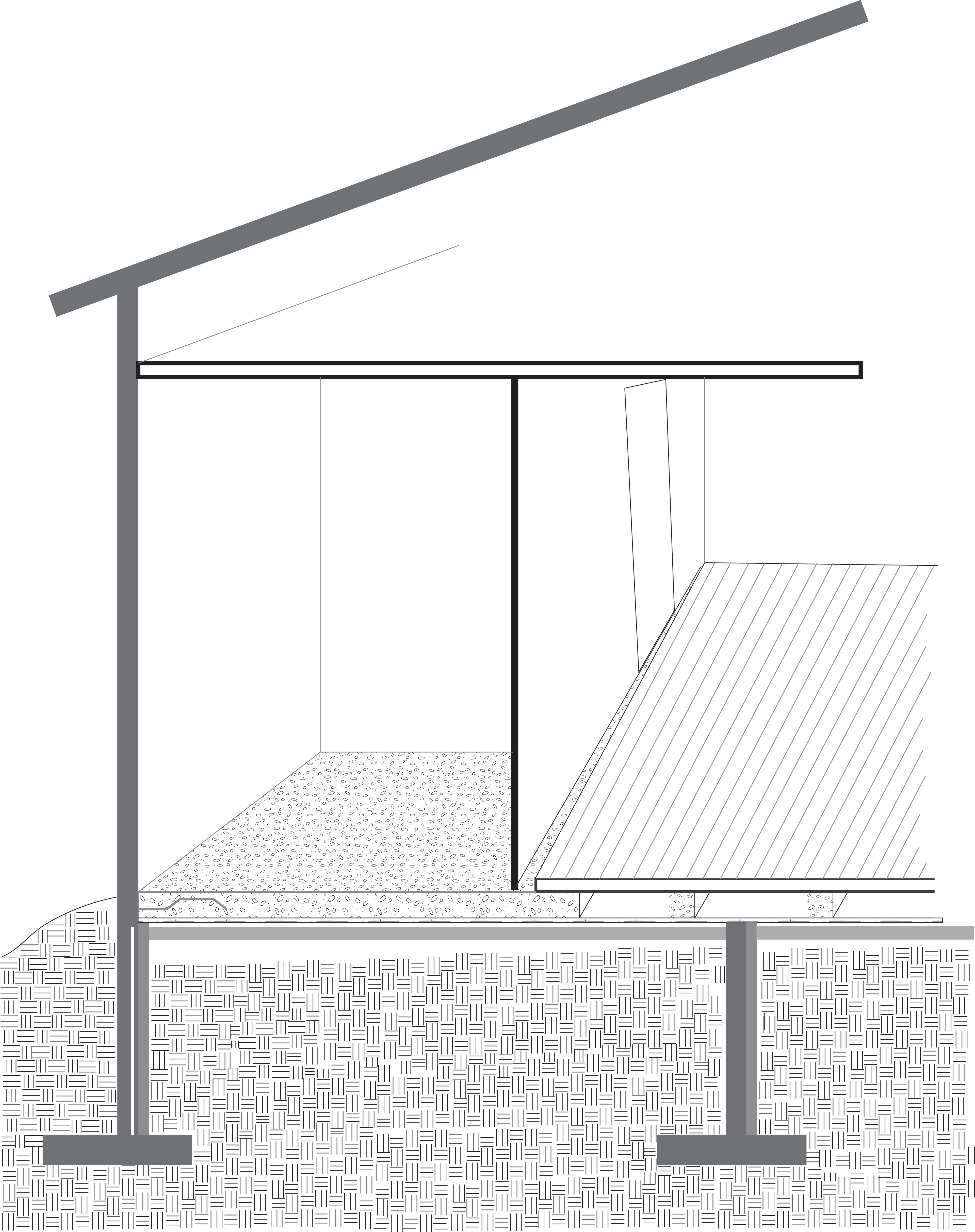

floor section depicting difference in paths and floor materials used

first view from visitor entrance
first view from visitor entrance
dental office, reception desk
dental office, reception desk
medical clinic hall
medical clinic hall
staff entrance second floor
staff entrance second floor
exterior view of front entrance, enscape
exterior view of front entrance, enscape
path between
path between
waiting room view 1
waiting room view 1
waiting room view 2
waiting room view 2
